Debugger
A debugger bridge is implemented is GodotJS which supports v8 inspector protocol. Chrome devtools
and VSCode
are both supported to debug your JS/TS code.
NOTE: The listening port can be changed in
Project Settings
, and a restart is required for it to take effect.
Project Settings > GodotJS > Debugger > Editor Port
forEditor
environment
Project Settings > GodotJS > Debugger > Runtime Port
forRuntime
environment. CheckAdvanced Settings
if they are not listed inProject Settings
.

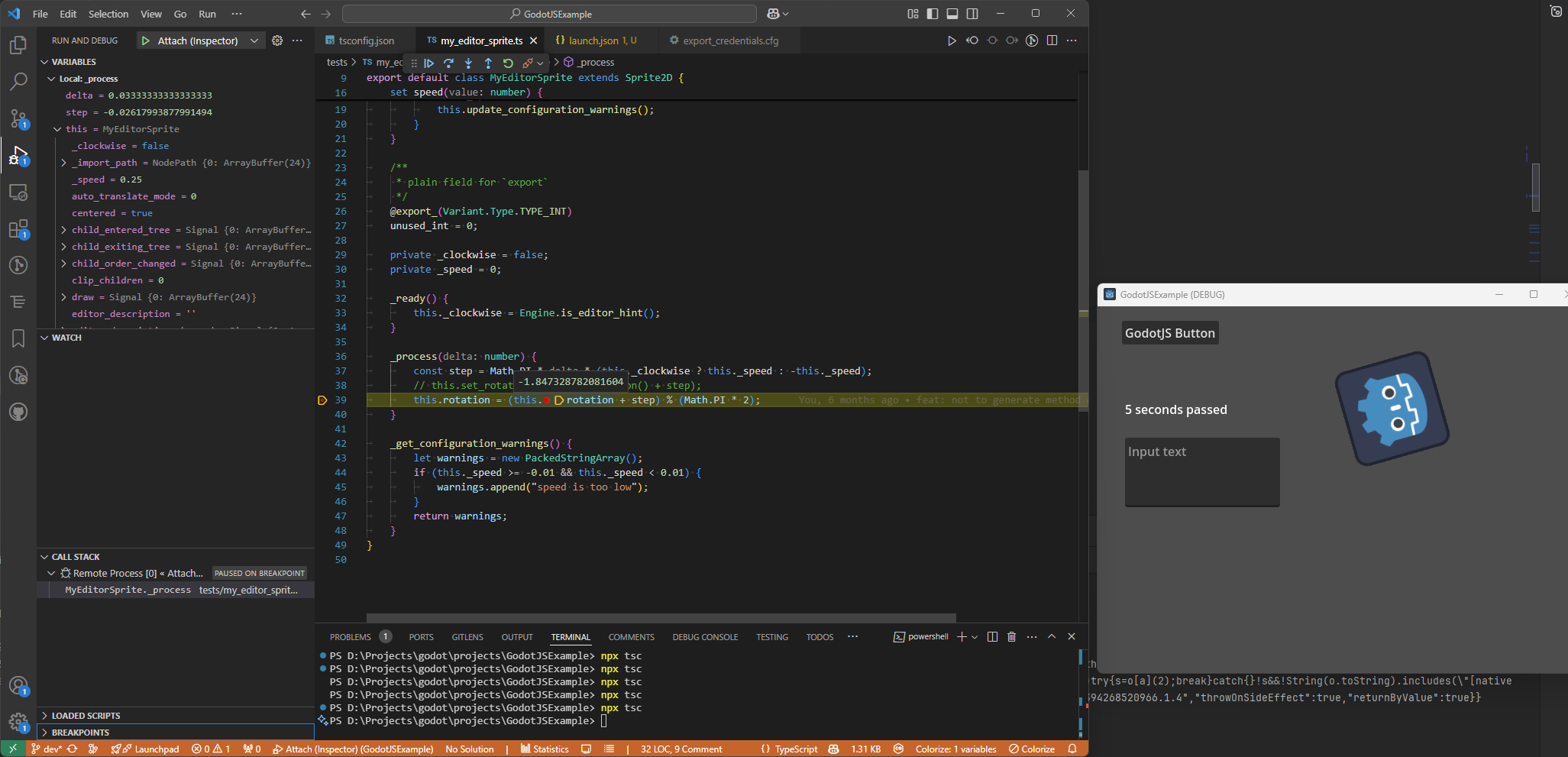

VSCode
Add the following configuration into launch.json
:
{
"version": "0.2.0",
"configurations": [
{
"type": "node",
"request": "attach",
"name": "Attach (Inspector)",
"protocol": "inspector",
"address": "127.0.0.1",
"port": 9229
}
]
}
Then, press Start debugging (F5)
on the Run and Debug
panel after your app launched.

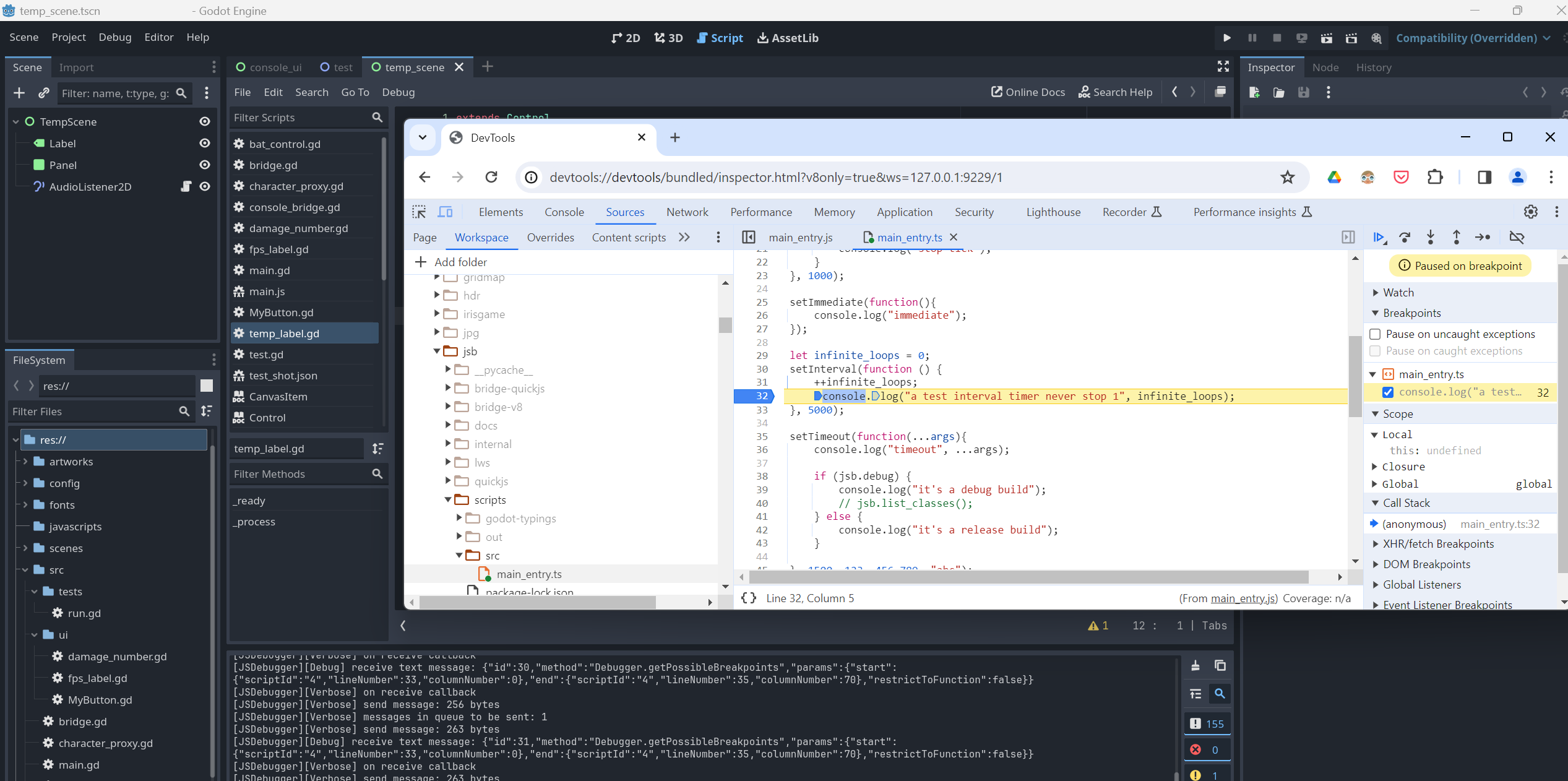

Chrome devtools
Open devtools://devtools/bundled/inspector.html?experiments=true&v8only=true&ws=127.0.0.1:9229/1
in Chrome
to start debugging the sources.

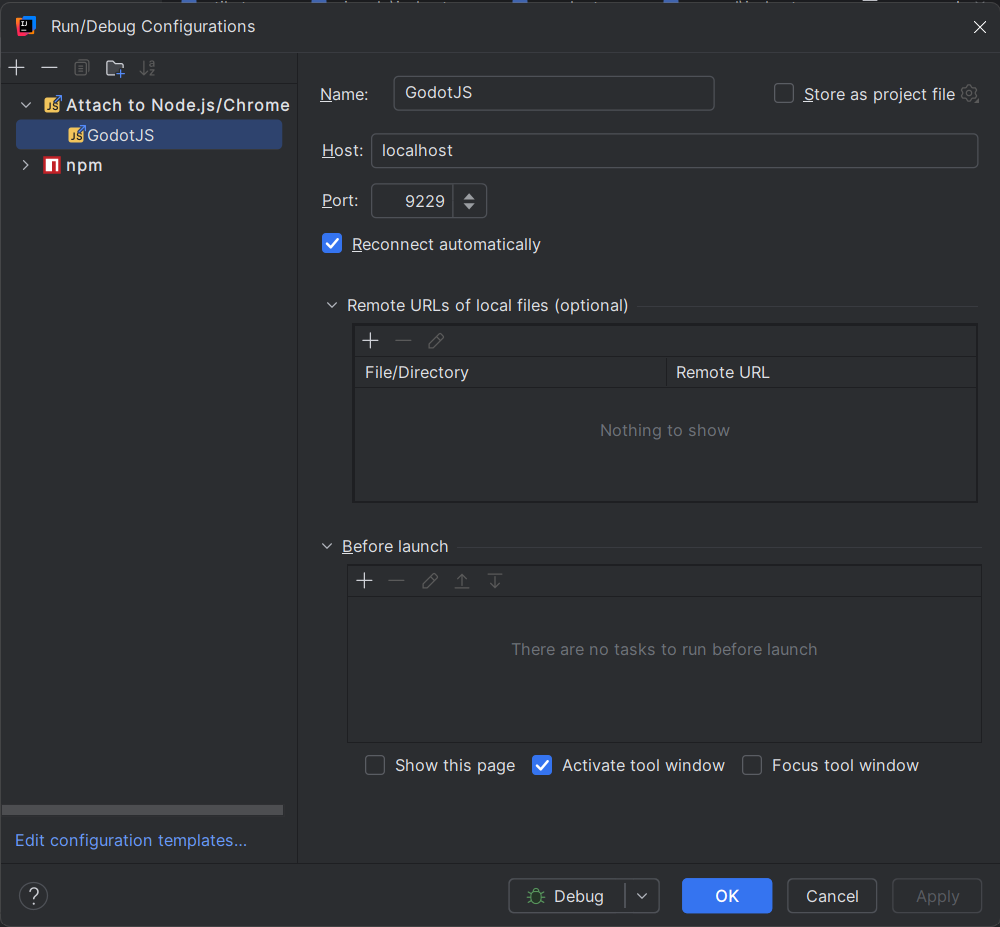

JetBrains IDEs
- Goto
Main Menu > Run > Edit Configurations
- Press ➕ (Add new configuration)
- Select
Attach to Node.js/Chrome
- Add a name to the configuration and select port
9229
- Start the configuration
Safari

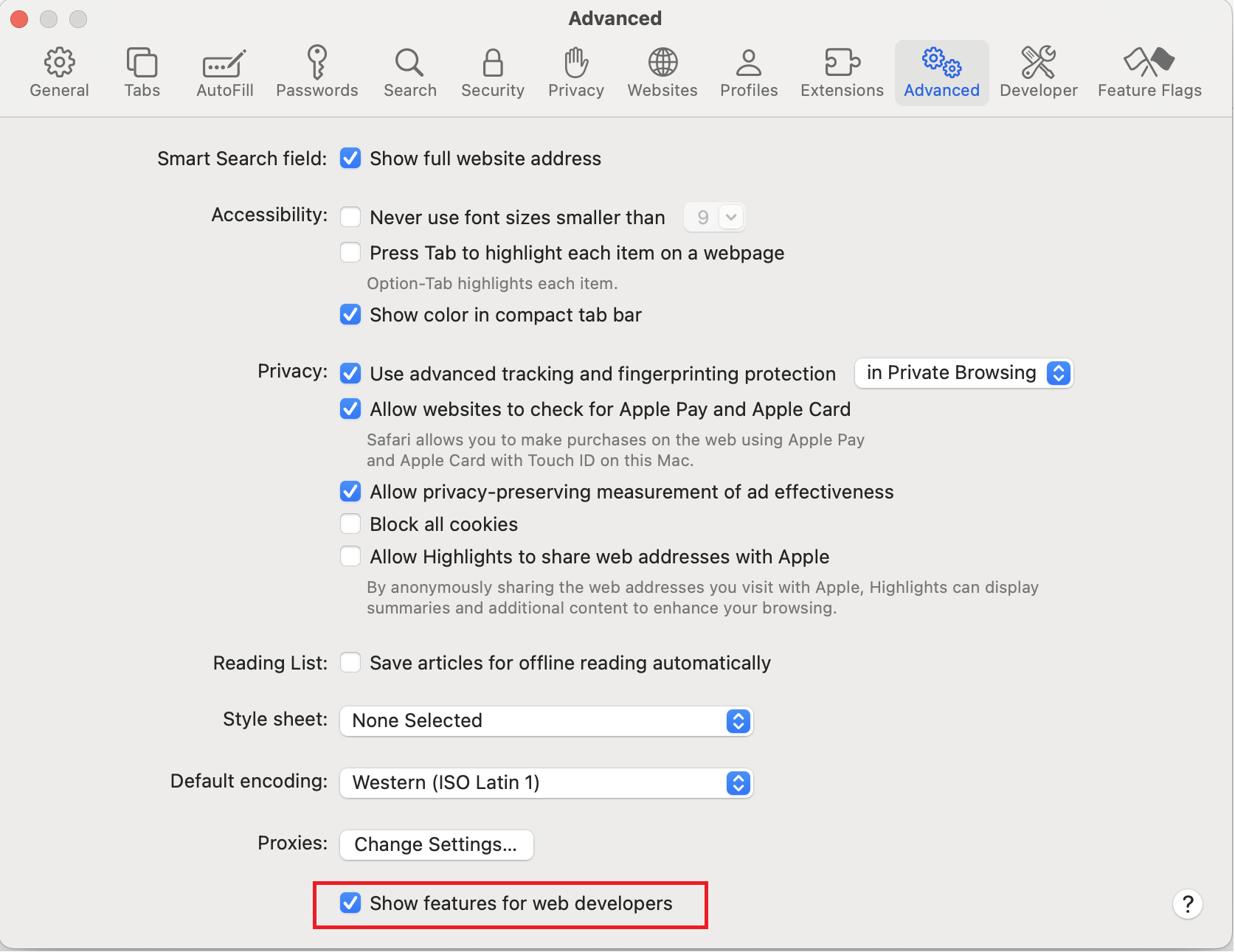

Enable Show features for web developers
in settings:

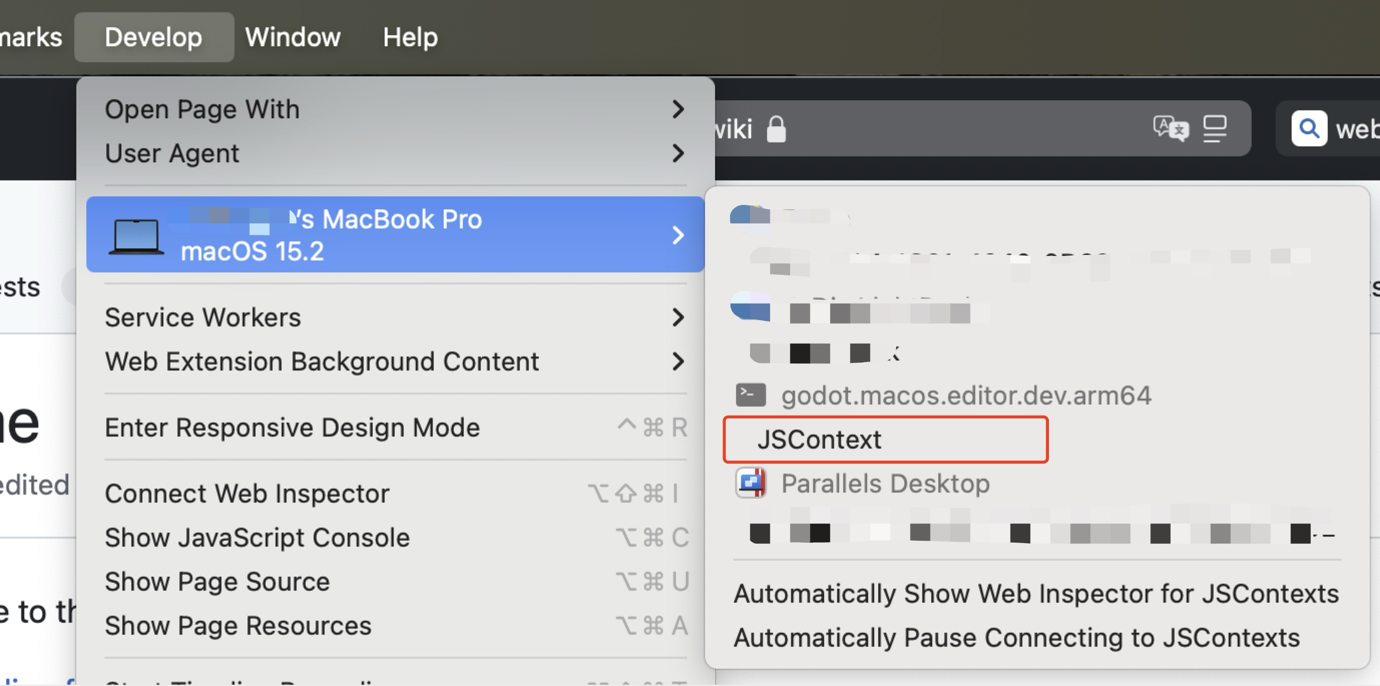

Select the session from menu:

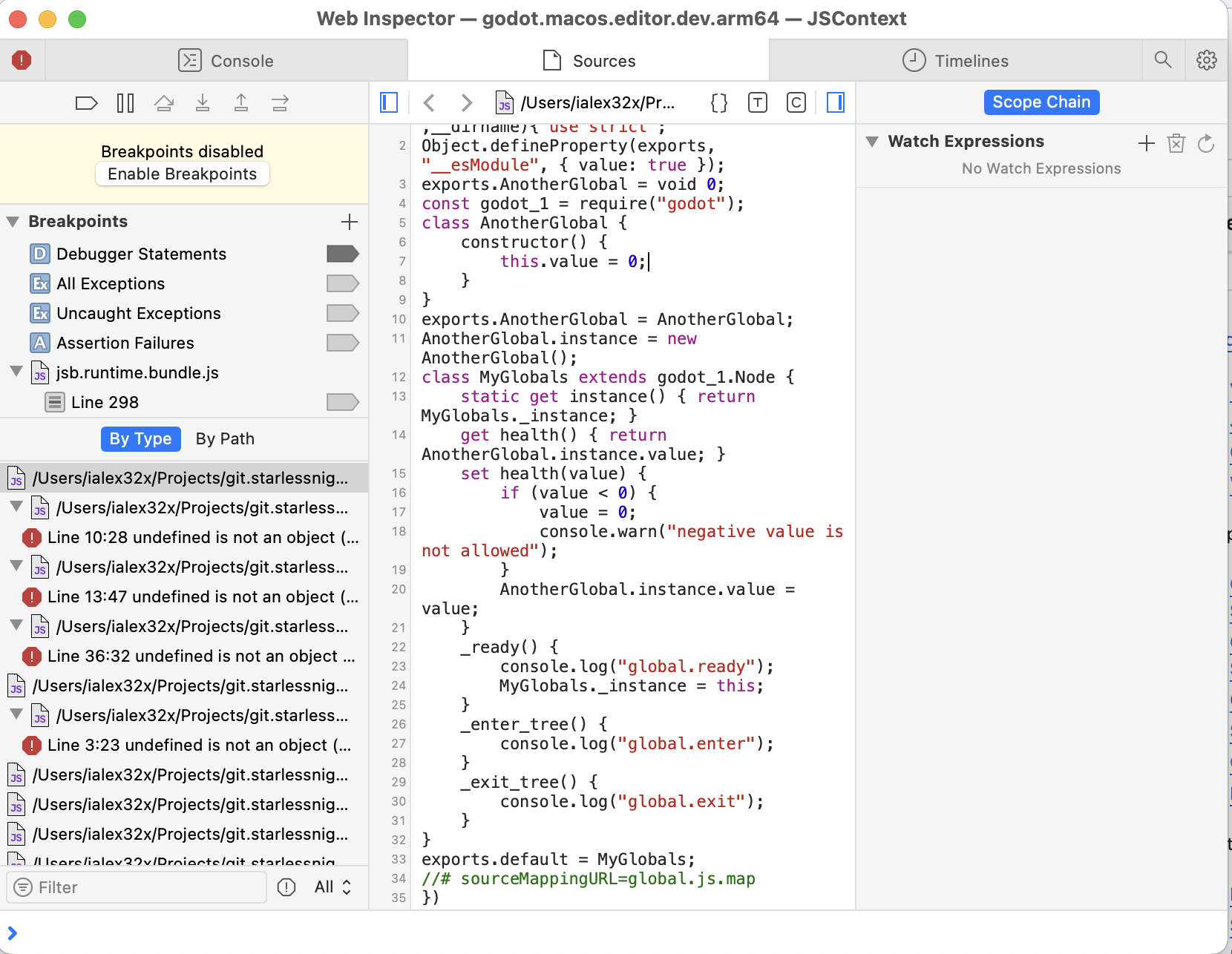

A web inspector window will be open if successfully:
Troubleshooting
Q: The debugger is connected successfully, but why no breakpoints can hit (or the devtools reports that a source can not be located)?
A: The debugger is resolving the source from a wrong place. Please update the value of sourceRoot
in your tsconfig.json
to an appropriate path (can be a relative path).
